980pump laser
980pump laser
产品详情


980pumplaser

Features

 14-pinButterfly Package

WithThermoelectricity Cooling (TEC) and Monitor

Photodiode (MPD)

Single Mode Fiber(HI-1060) Coupling

Excellent Reliabilityto be fixed fiber with GlassSolder

TelcordiaGR-468-CORE Compliant

RoHS Compliant

Description

980nm pump laser module is the pump source of Erbium-DopedFiber Amplifier (EDFA). It needs higher output power and more strictreliability. In order to improve the product performance, we made someinnovation. Firstly, the higher power 980nm pump laser chip is selected.Secondly, low-temperature glass soldering technology is used in the process offiber lens fixing, chip soldering and other parts soldering. By all above thisinnovation, the stability and reliability is improved.

Applications

Lownoise erbium doped fiber amplifiers(EDFAs)

High bit rate, multicenterdigital EDFAs

Dense wavelength divisionmultiplexing(DWDM) EDFAs for small package designs

CATV system

Absolute MaximumRatings

Note: Over Absolute ParameterMay Laser Diode failure

Parameter

Symbol

Min

Max

Unit

Test Condition

LD Forward Current

If

-

1000

mA


LD Reverse Voltage

Vr

-

2

V


TEC Operation Current

Itec

-

2.5

A


TEC Operation   Voltage

VTEC

-

4.8

V


Storage Temperature

Tstg

-40

85


Operation Case Temperature

Top

-5

70


Relative Humidity

RH

0

95

%


ESD Level

-

-

500

V

Human body model

Lead Soldering   Temperature and Time

-

-

260

10s

Fiber Bend Radius

r

30

-

mm


OperatingParameters

(BOL, Tcase=-25to 70,TLD=25,-50dB reflection, unless noted otherwise)

Minimum

Operating Power

(mW)

Maximum

Operating Current(mA)

Minimum Free Kink Power

(mW)

400

650

450

500

780

550

600

900

650

700

1000

750

Electrical/ Optical Characteristics

(BOL,Tcase=-5to 70, TLD=25,-50dB reflection, unless noted otherwise)

Parameter

Symbol

Unit

Min

Typ

Max

Test Condition

Threshold Current

Ith

mA

-

-

80


LD Forward Voltage

VF

V

-

    -

    2.5


Center Wavelength

λc

nm

λc-1

λc

   λc+1

λc:974/976

Spectrum Width

∆λ

nm

-

-

1.0

RMS@-3dB,with FBG

MPD Responsibility

Rm

μA/mW

0.1

   1

   10


TEC Current

ITEC

A

-

-

2.5

∆T= 50

Iop= 1000mA

TEC Voltage

VTEC

V

-

-

4.8

∆T= 50

Iop= 1000mA

Thermistor Resistanc

Rth

KΩ

9.5

10

10.5

T=25

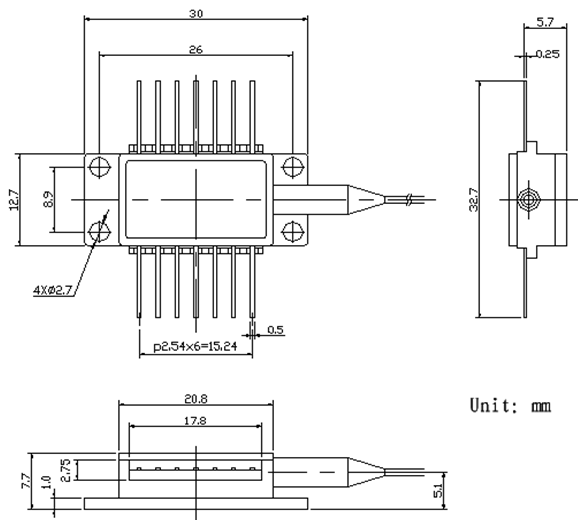

PackageSize

Note: specifications in mm unless otherwise noted;tolerance=.x±0.3,.xx±0.2

module pigtail consistsof Φ250μm buffered,CorningHI-1060 Single mode fiber. The length of fiber is more than 1m.

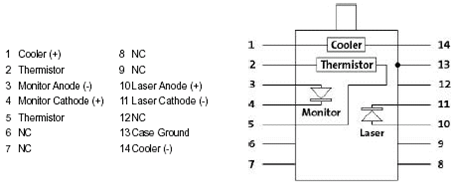

PackageInformation


Ordering Information

97*

1

1

***

*

0

Wavelengh

(nm)

Package Type

TEC

Power

mW

FBG

Connector

974:974;

976:976

1: 14Pin

Butterfly package

1 :With TEC

400:400

500:500

600:600

700:700

0:Without FBG

1:With FBG

0:Without Connector

2: SC/APC

5: FC/APC

Notice:

Donot put Laser transmission end (fiber cross section) to face toward your eye orskin. Active laser may burn your eye or skin.

Warning:

AbsoluteMaximum Ratings are not allowd to violate, otherwise, the product may befailure.

Inthe mode of CW, do not load an over-limit drive current, and do not directlyturn off the electric power, otherwise, the product performance will bedegraded. The right way to start the drive power is as below. Drop the devicepower voltage to “zero” status before correctly connect the product accordingto the pin-connection guide. Then slowly increase the drive current by monitoringthe product output power.

Beforeinstallation,the product need to be smoothly fixed on the cooling radiator ofthe operation platform. The screw is M2.5. By this way, the bottom dissipationcan be guranteed, and the product can work for longer time.

Donot knock by hard object at the product cover and tail tube. Do not stronglypull or wring the fiber.

ESD protection:

Inthe whole process of the product installation and working, system device andequipment need to have good earthing ( less than 2Ω of grounding resistanceis recommended). Staticcontrol wrist straps are required for operators.
